Our boiler and high-pressure pipes pass the tests listed below and exit our production lines and comply with EN 10204 2.1; 2.2; 3.1; 3.2 Material Test Certificates; PED Certified Pressure Equipment Directive 2014/68/EU Certified.

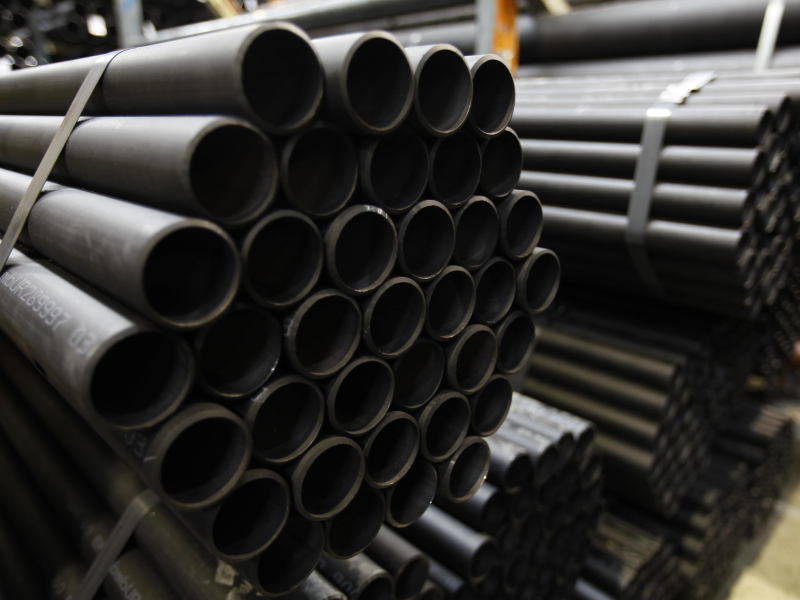

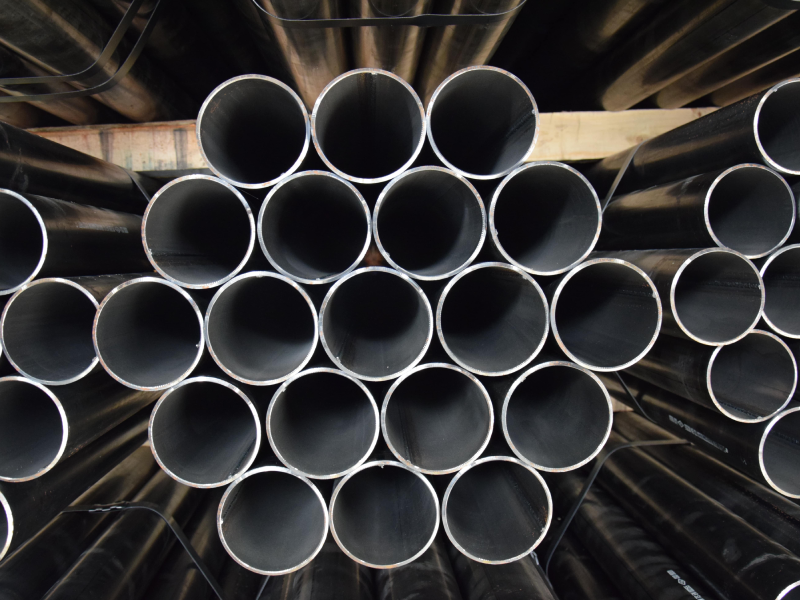

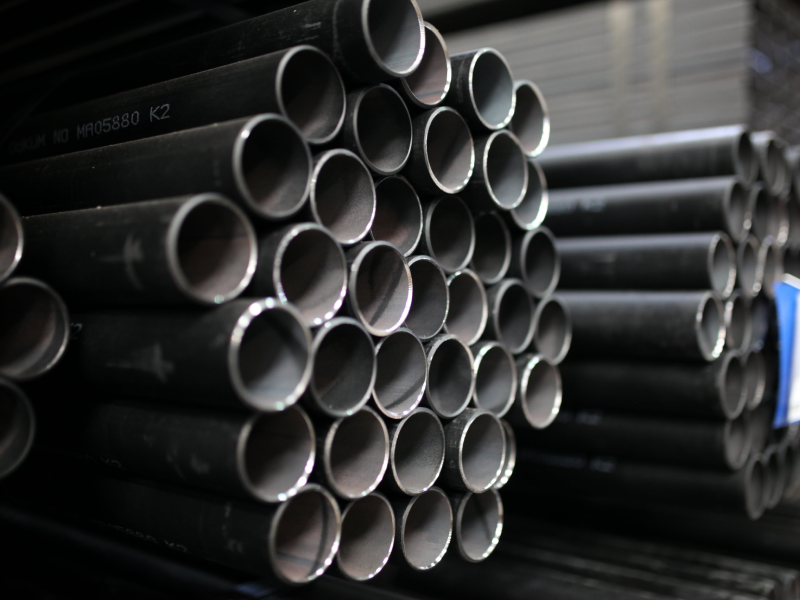

Tubes for Pressure Purpose / Boiler Tubes
With the quality and dedication to meet the needs of our business partners in the best way
Product Info
Outside Diameter
21,3 mm - 339,7mm
1/2’’ - 13 3/8’’
Wall Thickness
2,0 mm - 12,7 mm
0,079’’ - 0,500’’
Length
5,00 m - 18,30 m
16,40 ft - 60 ft
Please ask for shorter lengths.
• Plain End-Square cut or bevelled
• Black self colored/uncoated
• Surface protective coating (black varnished)
AD-2000 WO, AD-2000 W4, PED
UT (EN ISO 10893-11), ET (EN ISO 10893-2)
• Visual and Dimensional Inspection
• Mechanical Tests:
- Tensile Test, Flattening Test, Flaring Test
- Expanding Test
• Metallographic Examination
• Chemical Analysis
• Hydrostatic Test
• Non Destructive Inspection:
- In-Line Ultrasonic (weld check)
- Eddy Current
• Mill Test Certificates
Acc. to EN 10204 2.1; 2.2; 3.1; 3.2
PED Certifed-Pressure Equipment Directive 2014/68/eu Certified
